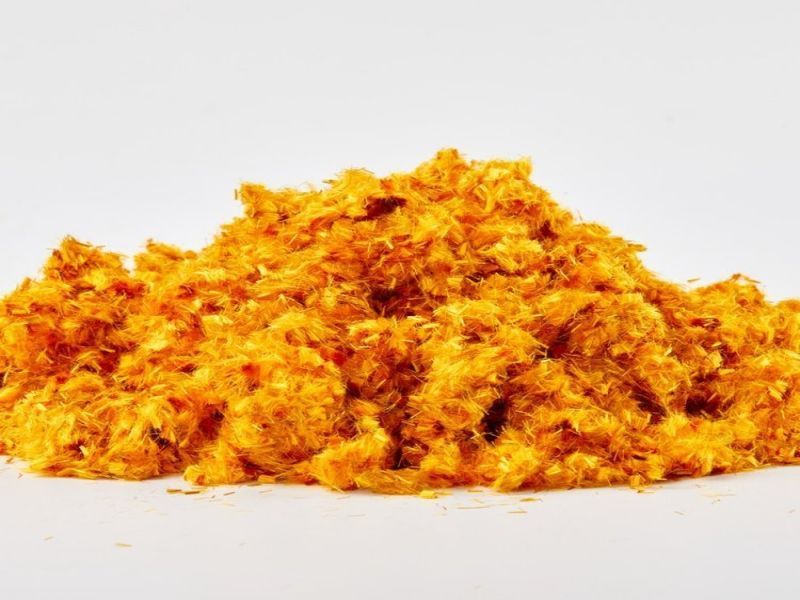

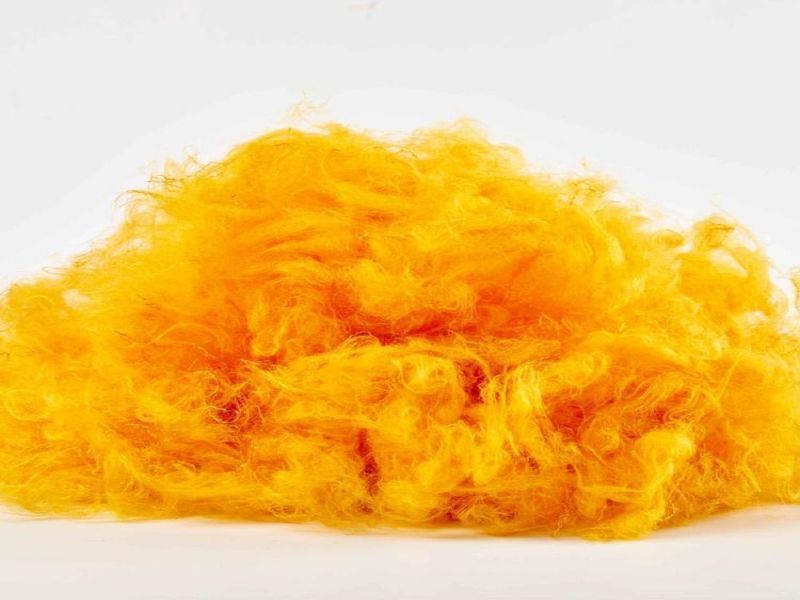

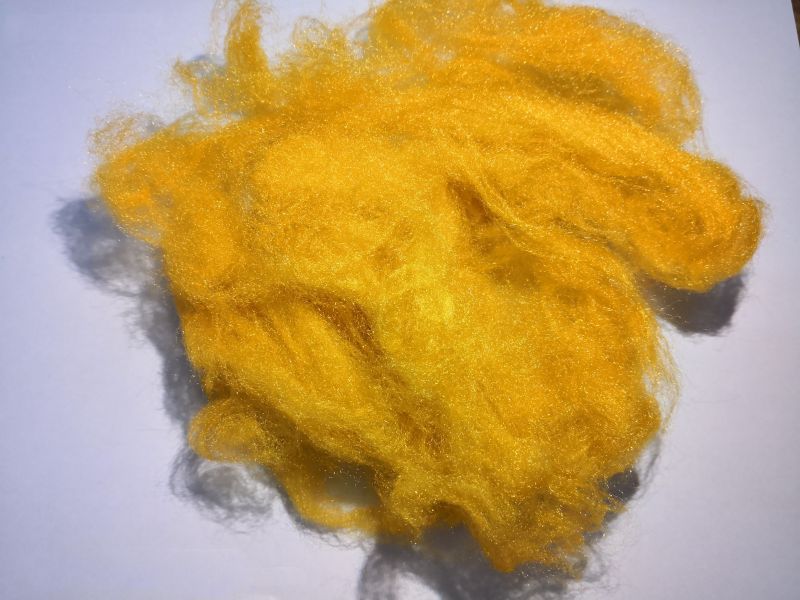

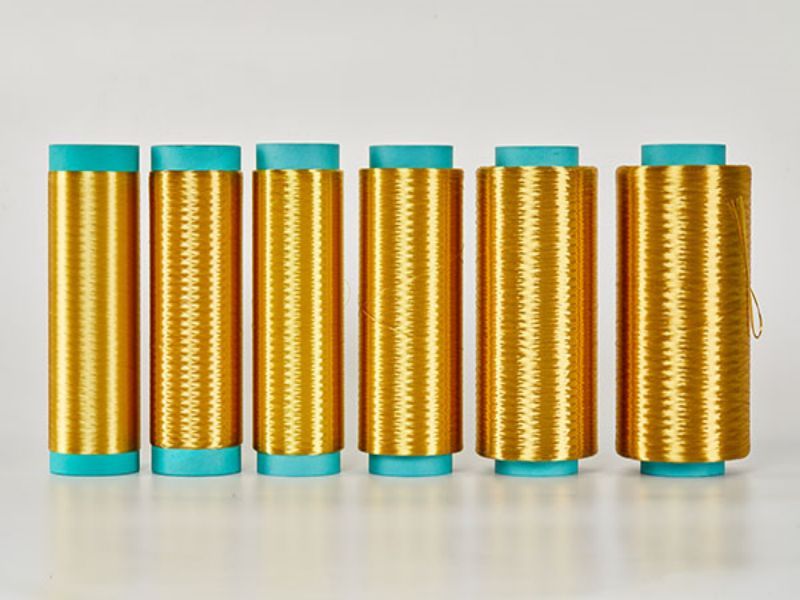

Lightweight Flame Retardant Resistance Polyimide Filament
Lightweight flame-retardant polyimide filament is a new type of material with excellent properties. With its good mechanical properties, light-weight flame-retardant polyimide filament has the characteristics of body flame retardancy, high-temperature carbonization insoluble drops, and burning smoke Excellent properties such as extremely low gas volume and almost non-toxicity, high and low temperature resistance, radiation resistance, chemical resistance, good dimensional stability, and good interface bonding are widely used in aerospace, automotive, electronics, textiles and other fields.
1. Product Introduction
Lightweight flame-retardant polyimide filaments can be used to weave flame-retardant protective fabrics and can also be used as reinforcements for composite materials.
Lightweight flame-retardant polyimide filament can be used for a long time in the temperature range of 260 ° C, flame-retardant, good insulation, light weight, light-weight flame-retardant polyimide filament can be compiled into cable shielding sheath, used in Cable sheaths for airtight special places such as aircraft and ships.
Lightweight flame-retardant polyimide filament has good UV resistance, thermal oxidation resistance and low moisture absorption, and can be used for outdoor cable protection.
2.Product Parameter
| No. | Breaking Strength | Initial Modulus | Elongation | ||
| GPa | cN/dtex | GPa | cN/dtex | % | |
| BMT-10 | 0.6-0.8 | 4.2-5.6 | 3-10 | 21-69 | 5-30 |
| BMT-02 | 2.4-2.9 | 16.7-20.1 | 90-130 | 625-902 | ≥2.5 |
| BMT-2S | 2.4-2.9 | 16.7-20.1 | ≥130 | ≥902 | ≥1.5 |
| BMT-10S | 2.9-3.4 | 20.1-23.6 | 90-130 | 625-902 | ≥2.5 |
| BMT-35 | 2.9-3.4 | 20.1-23.6 | ≥130 | ≥902 | ≥1.5 |
| BMT-30S | 3.4-3.9 | 23.6-27.1 | 90-130 | 625-902 | ≥2.5 |
| ITEM | INDEX |
| Water absorption | <1% |
| Hydrolysis resistance | Excellent |
| Acid resistance | Excellent |
| Alkali resistance | Poor |
| Solvent resistance | Excellent |
| Ultraviolet resistance | Excellent |
| Dielectric properties | Excellent |
| Thermal conductivity | ＜0.03W/（M.K） |
| Coefficient of thermal expansion | <-0.3%(250℃*15min) |
| Creep resistance | Excellent |
| Wear resistance | Excellent |
| Glass transition temperature | 320℃~410℃ |
| Long-term use temperature | <350℃ |
| Density | 1.44g/cm3 |
| Limiting oxygen index | >38 |
3. Product Feature
Good mechanical properties
Anti-aging type
Thermal stability
Flame retardant
Chemical stability
4. Product Details
(1) Environmental protection field: Lightweight flame-retardant polyimide filament is a typical application in the field of environmental protection as a high-temperature dust removal filter material. Since the lightweight flame-retardant polyimide filament can be spun to form a very high surface volume coefficient, it provides conditions for it to capture dust particles and improves the dust filtration efficiency. Coupled with the excellent heat resistance of lightweight flame-retardant polyimide filaments, lightweight flame-retardant polyimide filaments have become the best high-temperature filter materials at present. At the same time, as people pay more and more attention to the field of environmental protection, lightweight flame-retardant polyimide filament filter materials have considerable market prospects.
(2) Reinforcement and protection field: Lightweight flame-retardant polyimide filament is a typical application in the field of environmental protection as a high-temperature dust removal filter material. Since the lightweight flame-retardant polyimide filament can be spun to form a very high surface volume coefficient, it provides conditions for it to capture dust particles and improves the dust filtration efficiency. Coupled with the excellent heat resistance of lightweight flame-retardant polyimide filaments, lightweight flame-retardant polyimide filaments have become the best high-temperature filter materials at present. At the same time, as people pay more and more attention to the field of environmental protection, lightweight flame-retardant polyimide filament filter materials have considerable market prospects.
(3) Apparel and textile field: Lightweight flame-retardant polyimide filament has excellent properties such as heat preservation and heat insulation. In recent years, it has been extended from the field of special protection to the field of civilian textile and clothing. For example, blending lightweight flame-retardant polyimide filaments with other raw materials to design autumn and winter clothing products; using lightweight flame-retardant polyimide filament airgel membranes as filter layers for daily protective masks, etc.
